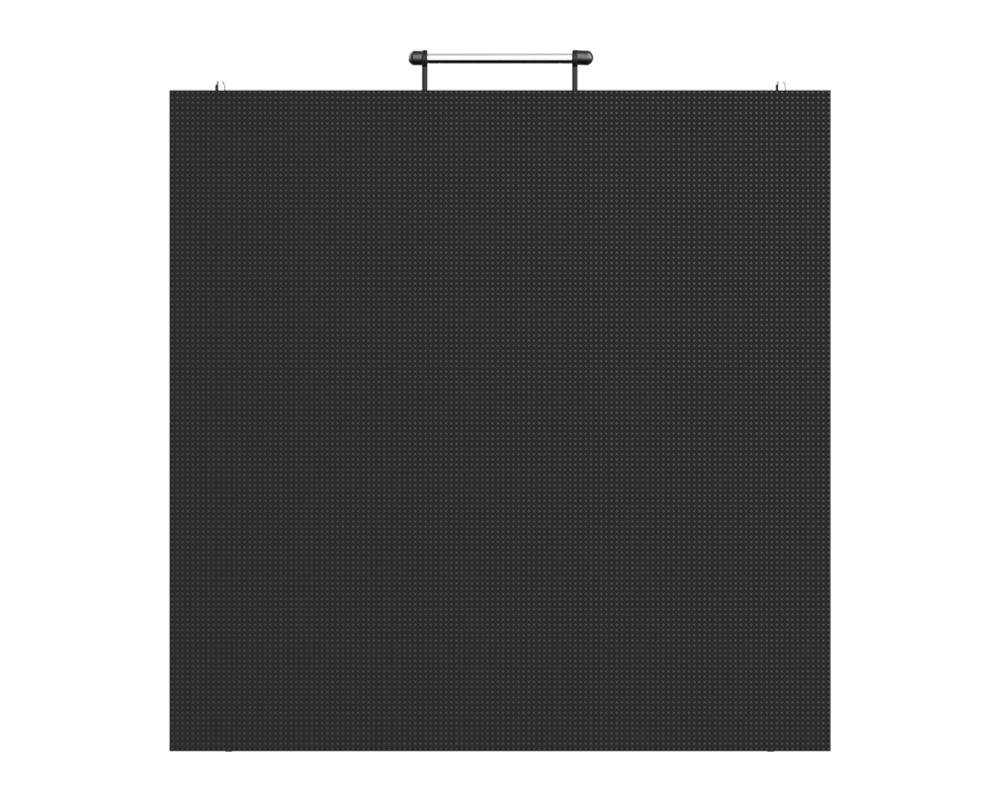

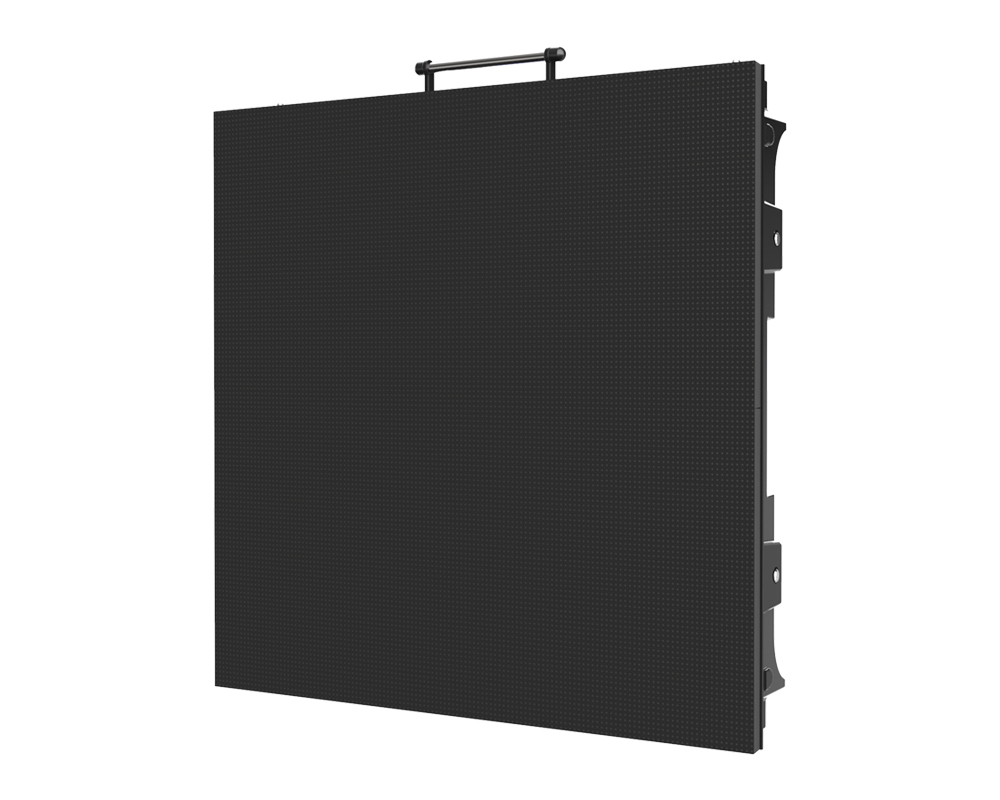

PRODUCT OVERVIEW
FEATURES
1. APPLICATION
Stage background, Outdoor advertising

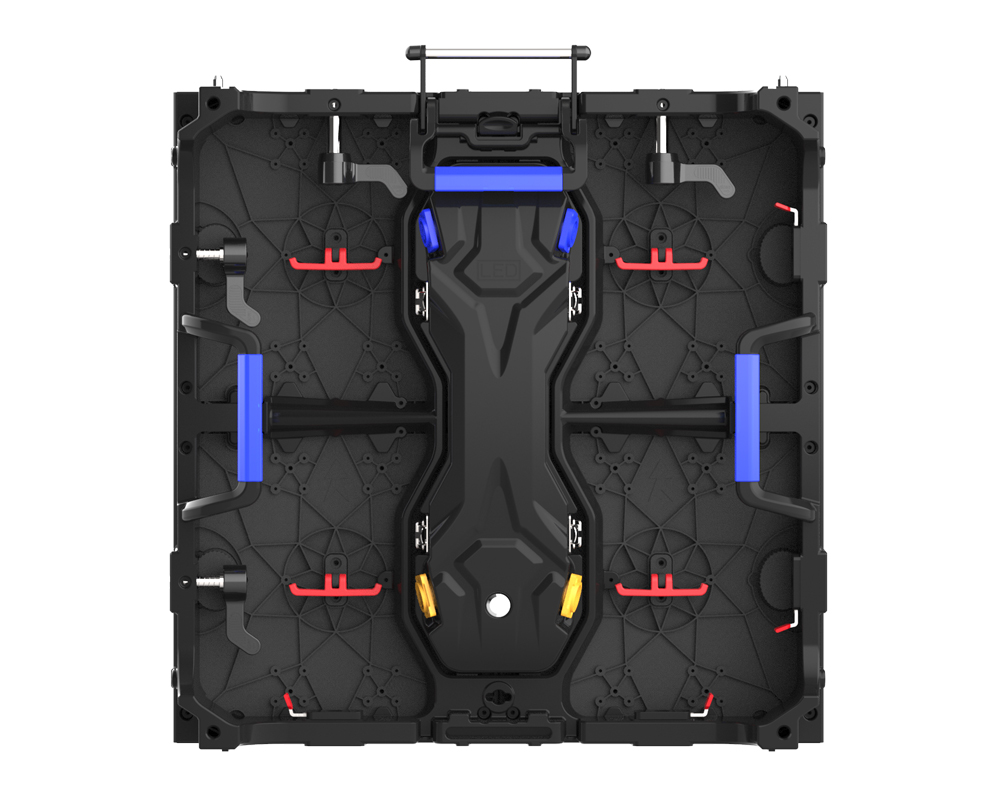

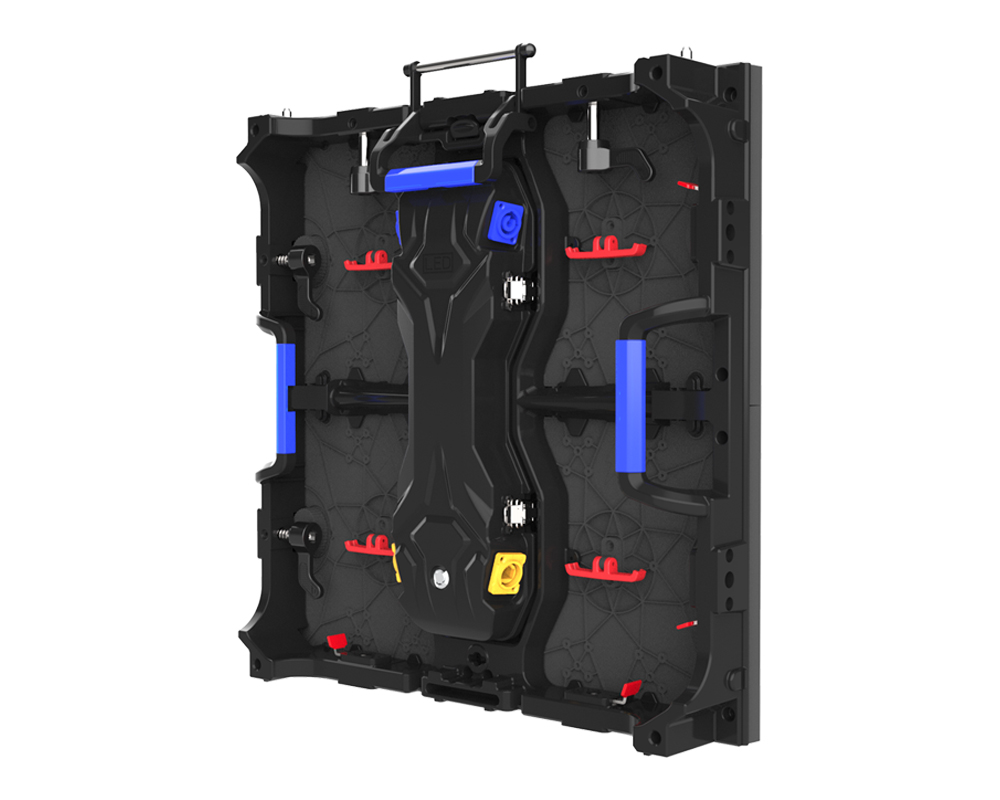

2. INDEPENDENT CONTROL BOX DESIGN
TECHNICAL PARAMETERS
| Items | INDOOR | OUTDOOR |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | 1R+1G+1B(3 In 1) | 1R+1G+1B(3 In 1) |
| LED Encapsulation | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 |
| Pixel Density (dots/m²) | 147456 | 112896 | 65536 | 43264 | 65536 | 43264 | 28224 | 25600 |
| Module Resolution(W*H) | 96*96 | 84*84 | 64*64 | 52*52 | 64*64 | 52*52 | 42*42 | 40*40 |
| Module Size | 250*250mm | 250*250mm |
| Cabinet Size | 500*500*88mm | 500*500*88mm |
| Driving Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | 1/16 or 1/8 | 1/13 Scan | 1/14 Scan | 1/10 Scan |
| Refresh Frequency | 1920/2880/3840Hz | 1920/2880/3840Hz |
| Grey Scale | 14~16Bit | 14~16Bit |
| White balance Brightness | ≥800cd/m² | ≥4500cd/m² |
| Color Temperature | 4500~9000(adjustable) | 4500~9000(adjustable) |
| Viewing Angle | 120°/120° | 120°/120° |
| Optimal Viewing Distance | ＞2.6m | ＞2.97m | ＞3.91m | ＞4.81m | ＞3.91m | ＞4.81m | ＞5.95m | ＞6.25m |
| Working Voltage | AC 220V/110V ±10% | AC 220V/110V ±10% |
| Operating Temperature | –10℃～65℃ | –10℃～65℃ |
| Max.Power Consumption(W/m²) | 800 | 800 | 750 | 750 | 900 | 900 | 900 | 900 |
| Avg.Power Consumption(W/m²) | 270 | 270 | 250 | 250 | 300 | 300 | 300 | 300 |
| Lifetime | 100000hours | 100000hours |
| Weight | 8Kg | 8Kg |
