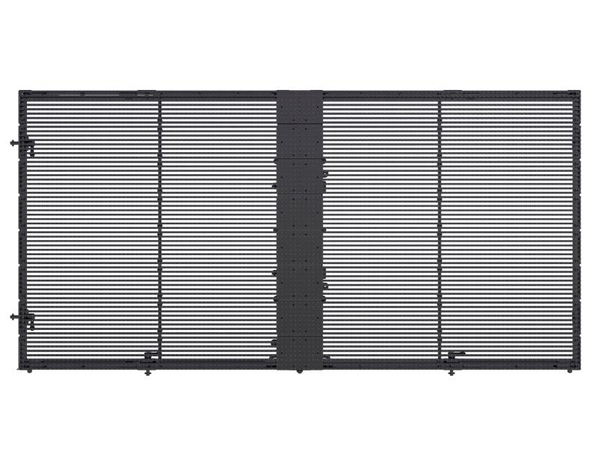

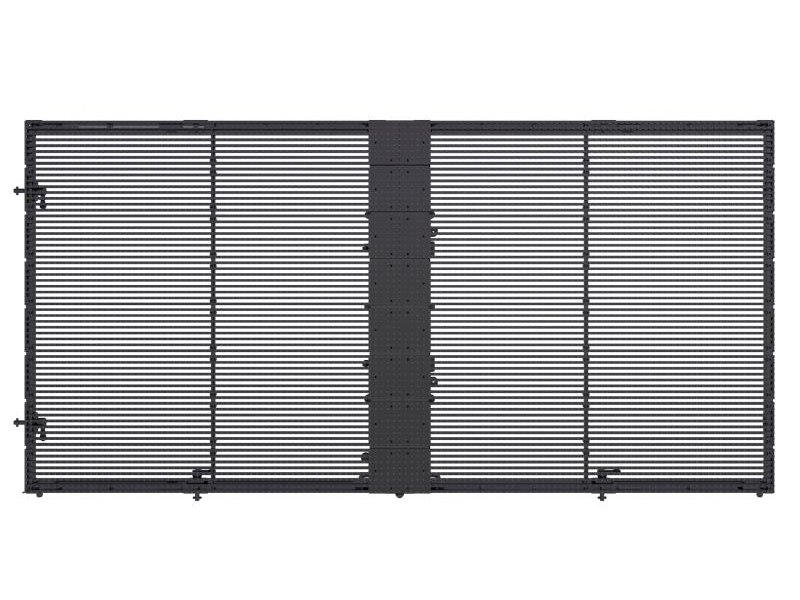

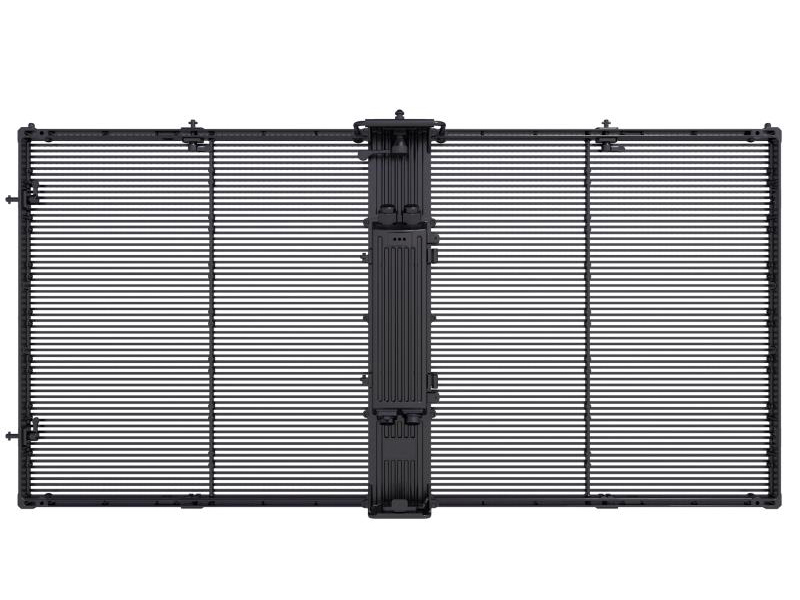

Glass Window Transparent LED Display

Usage Environment： Indoor & Outdoor
Pixel Ptich： P3.91mm-5mm
Application： Bank, Shopping mall, theatres, chain stores, hotels, landmarks，4S Automobile Shop
PRODUCT DETAILS

Items

Parameter

Pixel Pitch

3.91mm-5mm

3.91mm-7.82mm

6.25mm-6.25mm

7.82mm-7.82mm

7.82mm-15.64mm

Pixel Configuration

1R+1G+1B(3 In 1)


Pixel Density51200 dots/m²32768 dots/m²25600 dots/m²16384 dots/m²8192 dots/m²
Viewing Distance5~100m5~100m8~100m8~100m10~100m
Cabinet Size500*1000/1000*1000mm
Transparency Rate65%70%70%75%80%
Viewing Angle120°~120°
Driving Method1/8 Scan1/8 Scan1/8 Scan1/4 Scan1/1 Scan
Refresh Frequency≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥1920Hz
White balance Brightness≥5000cd/ m2≥5000cd/ m2≥5000cd/ m2≥5000cd/ m2≥5000cd/ m2
Avg.Power Consumption200W/m²280W/m²280W/m²280W/m²200W/m²
Max.Power Consumption600W/m²800W/m²800W/m²800W/m²600W/m²
MTBF≥6500h
Lifetime100000h
Weight15Kg/m²15Kg/m²15Kg/m²15Kg/m²15Kg/m²
Installation wayHanging & Stacking
Protection GradeIP45IP45IP45IP45IP45
