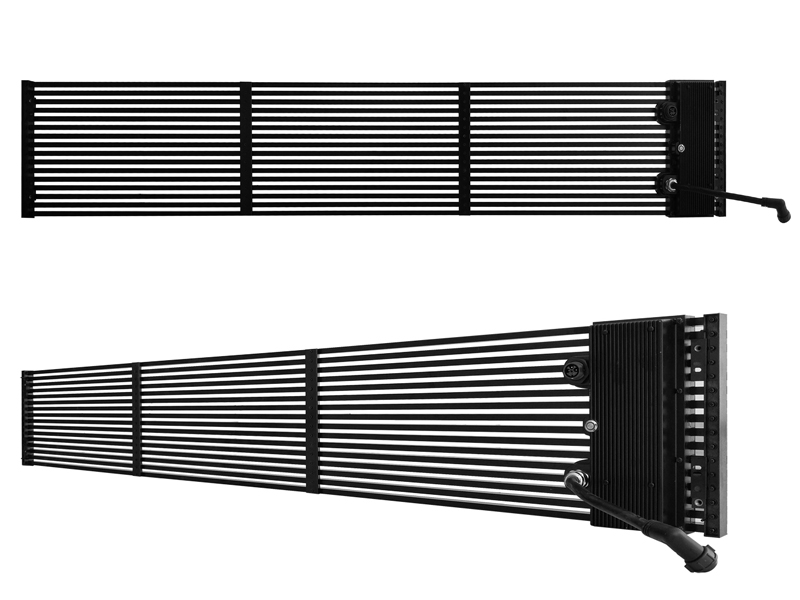

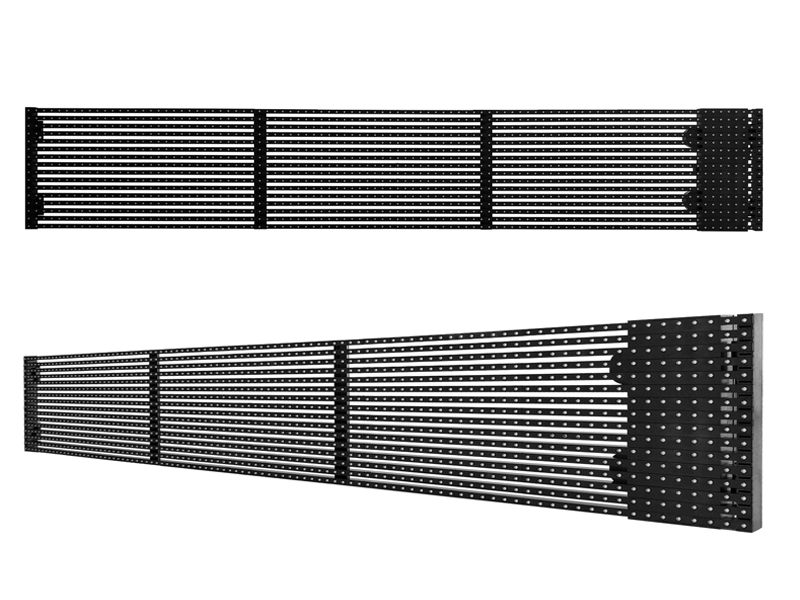

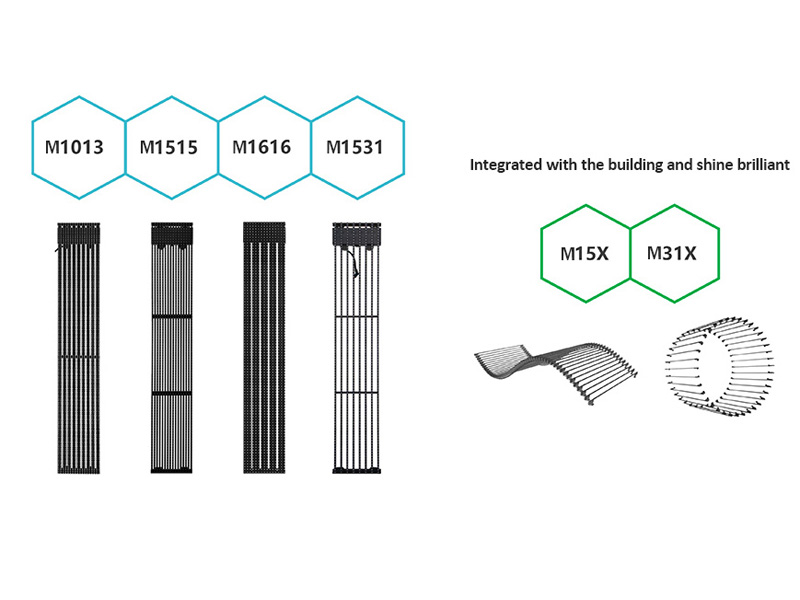

Outdoor Transparent Mesh LED Display

Usage Environment： Outdoor
Pixel Ptich： 10.4-13.8mm,15.6-15.6mm,16.6-16.6mm
Application： Outdoor Advertising, LED Billboard, Building Advertising
PRODUCT DETAILS
ItemsParameter
Pixel Pitch10.4mm-13.8mm15.6mm-15.6mm15.6mm-31.2mm16.6mm-16.6mm
Pixel ConfigurationDIP570
Pixel Matrix / Panel144*1896* 1696*890*15
Viewing Distance10~100m15~100m15~100m16~100m
Panel Size1500*250*66mm
Transparency Rate17%45%70%16%
Viewing Angle120°~120°
Refresh Frequency≥1920Hz≥1920Hz≥1920Hz≥1920Hz
White balance Brightness≥6500cd/ m2≥6500cd/ m2≥6500cd/ m2≥6500cd/ m2
Avg.Power Consumption200W/m²280W/m²280W/m²280W/m²
Max.Power Consumption600W/m²800W/m²800W/m²800W/m²
MTBF≥10000h
Lifetime100000h
Weight9.5Kg/Panel6.9Kg/Panel4.1Kg/Panel7.8Kg/Panel
Installation wayFixed
Protection GradeIP65IP65IP65IP65
