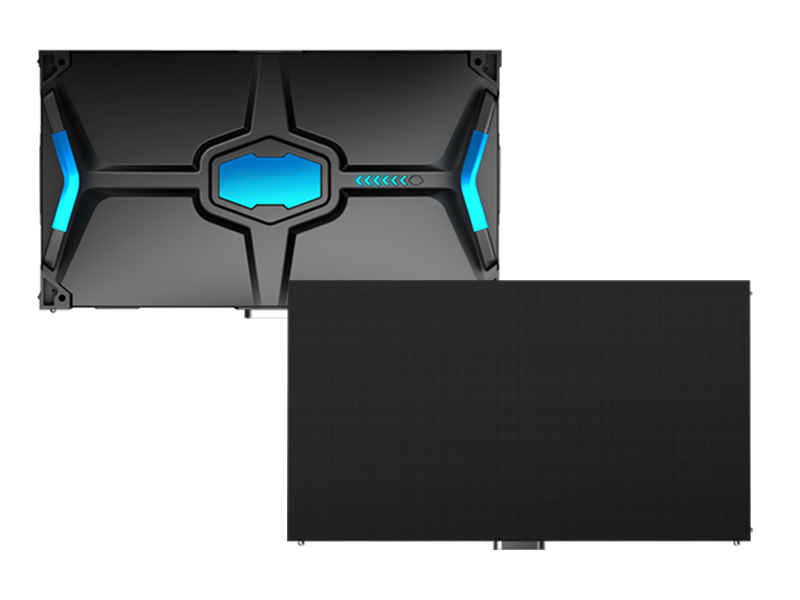

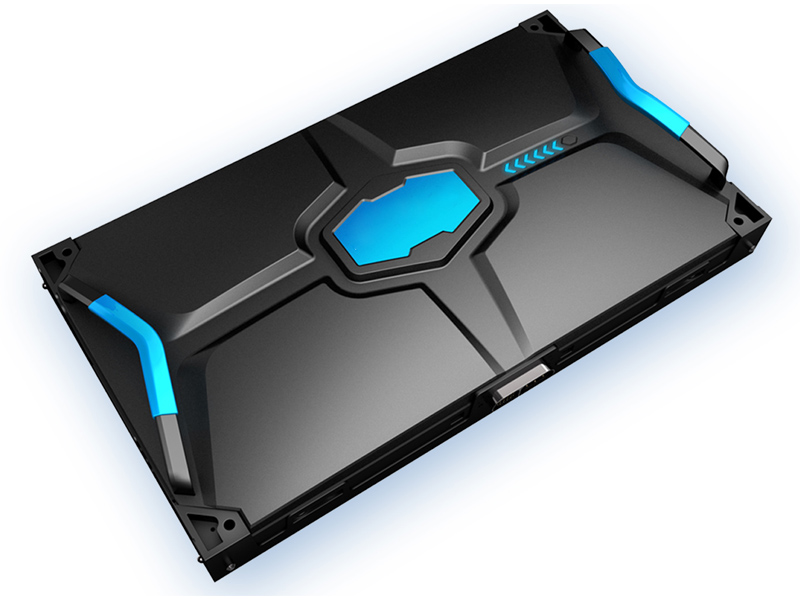

HD Small Pitch LED Display

Usage Environment：	Indoor
Pixel Ptich：	P1.25, P1.56, P1.875, P2.5
Application：	smart cities,traffic control centers,security monitoring centers, video meeting rooms,radio and TV systems,exhibition centers and other places

PRODUCT DETAILS

Pixel pitch (mm)	1.25	1.56	1.875	2.5
Pixel Configuration	SMD0808/1010	SMD0808/1010	SMD0808/1010	SMD1010
Pixel density (dots/m2)	640000	410897	286225	160000
Module resolution (W×H)	160*135	128*108	160×90	80×135
Module size (mm)	200(W)*168.75(H)	200(W)*168.75(H)	200(W)*168.75(H)	200(W)*168.75(H)
Module weight (kg)	0.4
Maximum power consumption of the module (W)	40
Module of cabinet（W×H）	2*2
Cabinet resolution（W×H）	480*270	384×216	320×180	240×135
Cabinet size（mm）	600（W）×337.5（H）×80（D）
Cabinet area（m2）	0.2025
Cabinet weight（kg）	7.8
Cabinet level up degree(mm)	≤0.2
Maintenance mode	Front
Cabinet raw material	Die-casting aluminum
White Balance Brightness（nits）	≥800（6500K）
Color Temperature (K)	3200—9300(adjustable)
Viewing Angle(Horizontal / Vertical)	160/160
Deviation of center distance of light – emitting	<3%
Brightness / chromaticity uniformity	≥97%
Contrast	8:01:00
Refresh rate (Hz)	≥3840
Number of color processing bits	16bit
Video playback capabilities	2KHD, 4KHD
Applicable standards	CCC, TUV-CE, ETL
