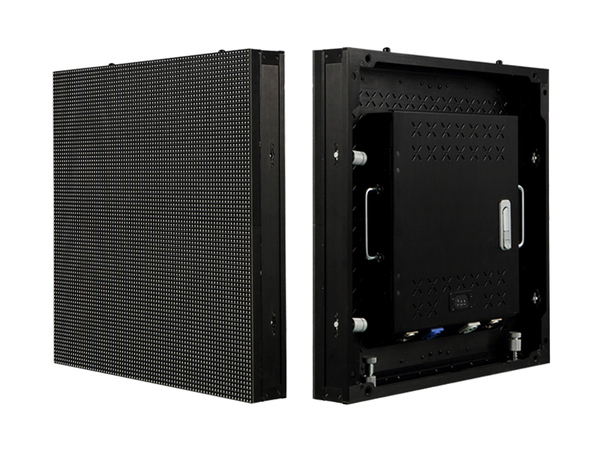

Indoor Fixed LED Screen

Usage Environment：	Indoor
Pixel Ptich：	P2.5~P6
Application：	Indoor advertising, Malls, banks and automobile sales centers, Airports, rail and bus stations, other facilities of transport infrastructure, Entertainment centers, casinos, night clubs, restaurants.

PRODUCT DETAILS

Items	Parameter
Pixel Pitch	2mm	2.5mm	3mm	4mm	5mm	6mm
Pixel Configuration	1R+1G+1B(3 In 1)
LED Encapsulation	SMD 1515	SMD 1515	SMD 2121	SMD 2121	SMD 3528	SMD 3528
Pixel Density	250000 dots/m²	160000 dots/m²	111111 dots/m²	62500 dots/m²	40000 dots/m²	27777 dots/m²
Module Resolution(W*H)	64(W)*64(H)	64(W)*64(H)	64(W)*64(H)	64(W)*32(H)	64(W)*32(H)	32(W)*32(H)
Module Size	128*128mm	160*160mm	192*192mm	256*128mm	320*160mm	192*192mm
Cabinet Size	Customized
Driving Method	1/32 Scan	1/32 Scan	1/16 Scan	1/16 Scan	1/8 Scan	1/8 Scan
Refresh Frequency	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Driver IC	Constant current IC with high refresh rate & high grey scale
Grey Scale	14Bit (depending on the system and Configuration)
White balance Brightness	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2
Color Temperature	4500~9000(adjustable)
Viewing Angle	120/120°
Optimal Viewing Distance	＞2m	＞2.5m	＞3m	＞4m	＞5m	＞6m
Working Voltage	AC 220V/110V ±10%
Operating Temperature	–10℃～65℃
Max Power Consumption	750W/m²	750W/m²	750W/m²	750W/m²	750W/m²	750W/m²
Avg.Power Consumption	250W/m²	250W/m²	250W/m²	250W/m²	250W/m²	250W/m²
Lifetime	50000hours
Weight	50Kg/m²	50Kg/m²	50Kg/m²	50Kg/m²	50Kg/m²	50Kg/m²
