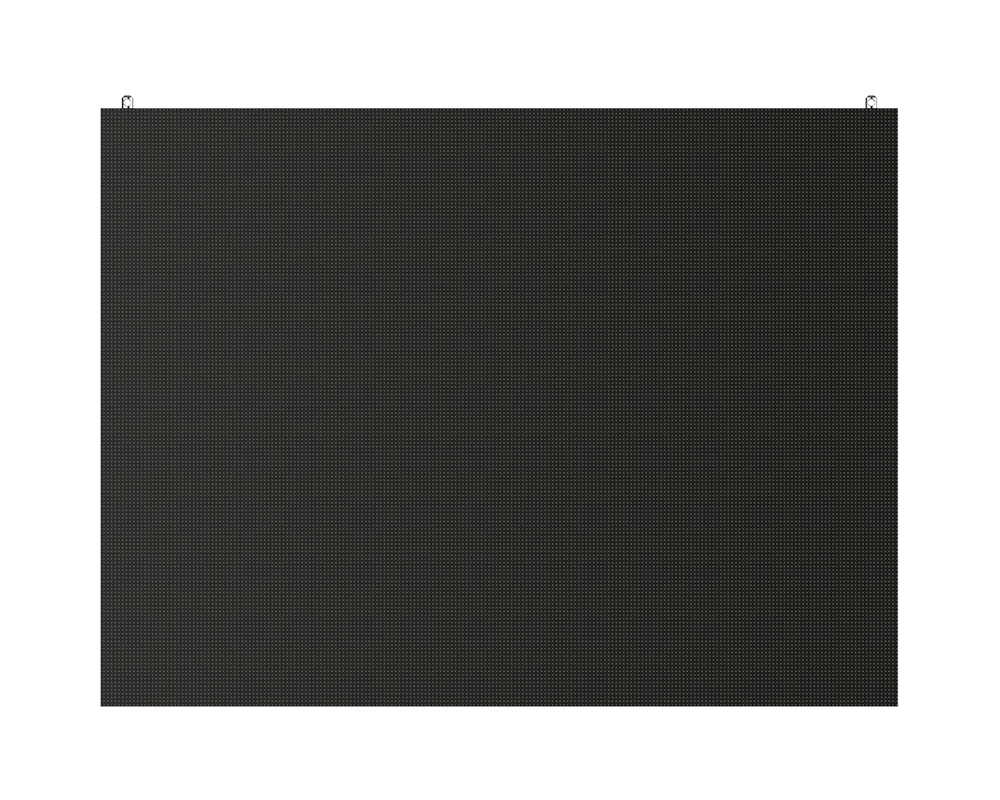

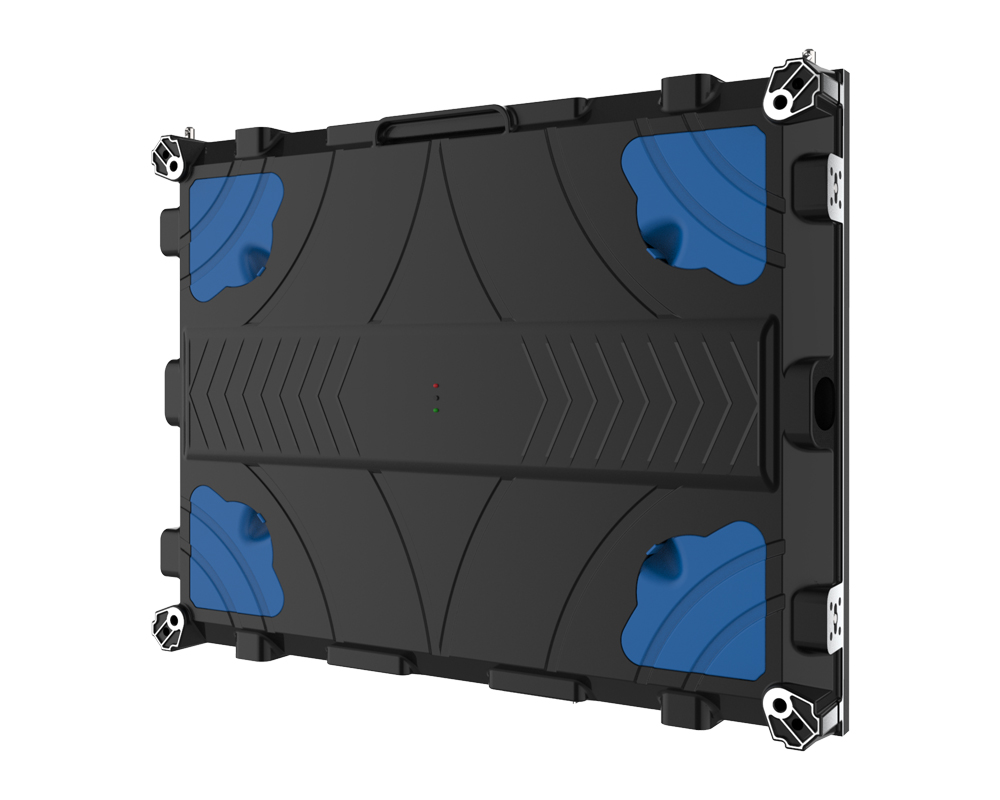

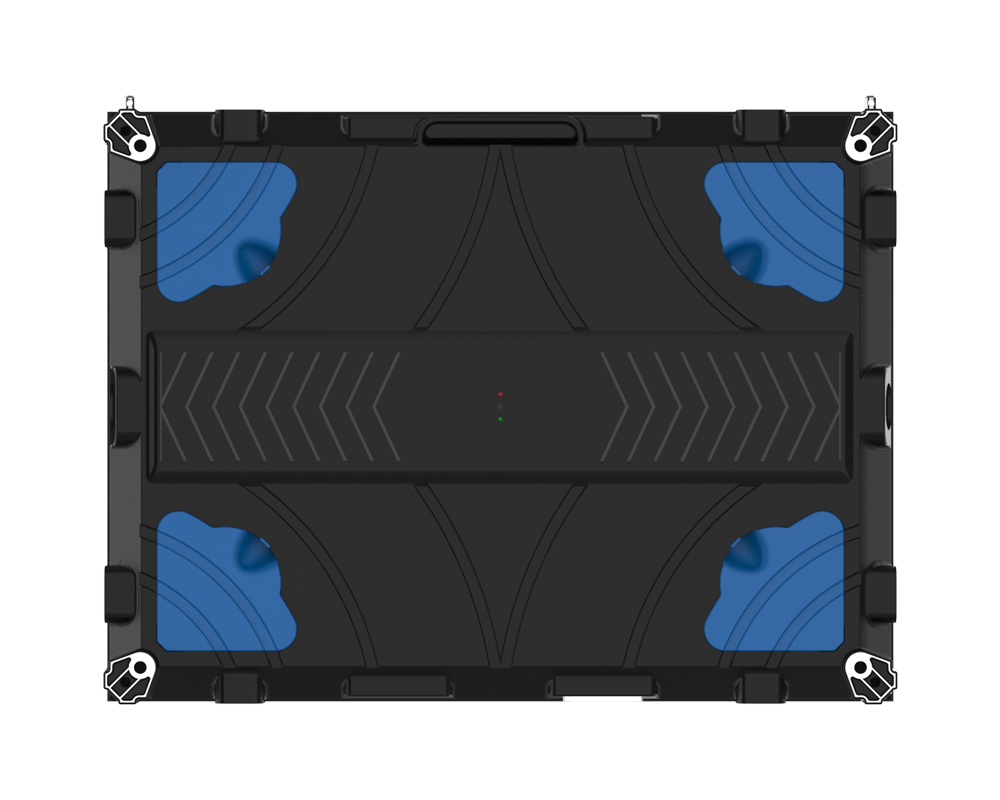

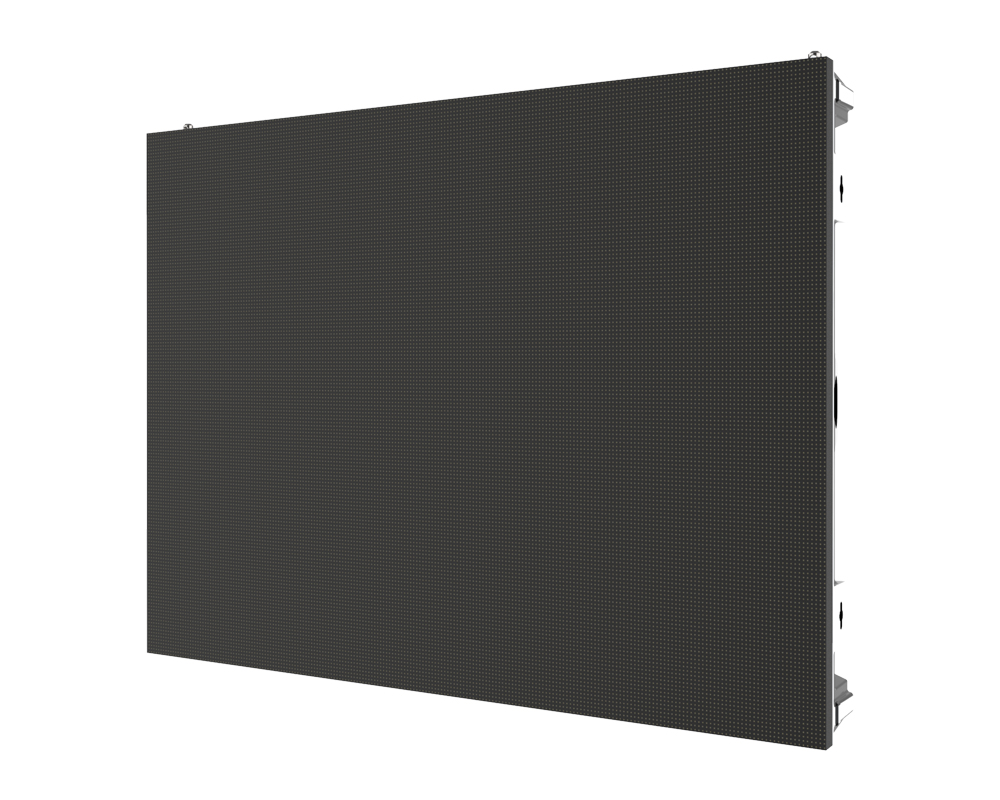

PRODUCT OVERVIEW
FEATURES
1. FULL FRONT ACCESS
All Modules, Power Supply, Receiving Cards, InternalCables Are Replaceable From Front, And Wall Mounted Installation.
2. STANDARD RATIO 4:3
Standard Ratio 4:3 Is Fixed When The horizontal
and vertical cabinets are the same.
3. WALL MOUNTED INSTALLATION
This Cabinet Can Be Wall Mounted Installation
Just With Screws Or Square Tube Which Can
Reduce The Installation Time And Labor Cost.
TECHNICAL PARAMETERS
| Items | Specification |
| Pixel Pitch | 1.25mm | 1.37mm | 1.53mm | 1.63mm | 1.83mm | 2mm | 2.5mm | 3.08mm | 4mm |
| LED Encapsulation | SMD 0808 | SMD 1010 | SMD 1010 | SMD 1010 | SMD 1515 | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density(Dots/㎡) | 640000 | 525625 | 422500 | 360000 | 295664 | 250000 | 160000 | 105625 | 62500 |
| Module Resolution(W*H) | 256*128 | 232*116 | 208*104 | 192*96 | 174*87 | 160*80 | 128*64 | 104*52 | 80*40 |
| Module Size | 320*160mm |
| Cabinet Size | 640*480mm |
| Driving Method | 1/32 Scan | 1/29 Scan | 1/26 Scan | 1/32 Scan | 1/29 Scan | 1/20Scan | 1/32 Scan | 1/26 Scan | 1/20 Scan |
| Refresh Frequency | 3840Hz |
| Grey Scale | 14~16Bit |
| White balance Brightness | ≥600nits |
| Color Temperature | 4500~9000(adjustable) |
| Viewing Angle | 140°/140° |
| Optimal Viewing Distance | ＞1.25m | ＞1.4m | ＞1.5m | ＞1.6m | ＞1.9m | ＞2m | ＞2.5m | ＞3m | ＞4m |
| Working Voltage | AC 220V/110V ±10% |
| Operating Temperature | –10℃～65℃ |
| Max.Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 450W/m² | 450W/m² | 450W/m² | 450W/m² |
| Avg.Power Consumption | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 150W/m² | 150W/m² | 150W/m² | 150W/m² |
| Lifetime(H) | 100000 |
| Weight | ≈8kg |
