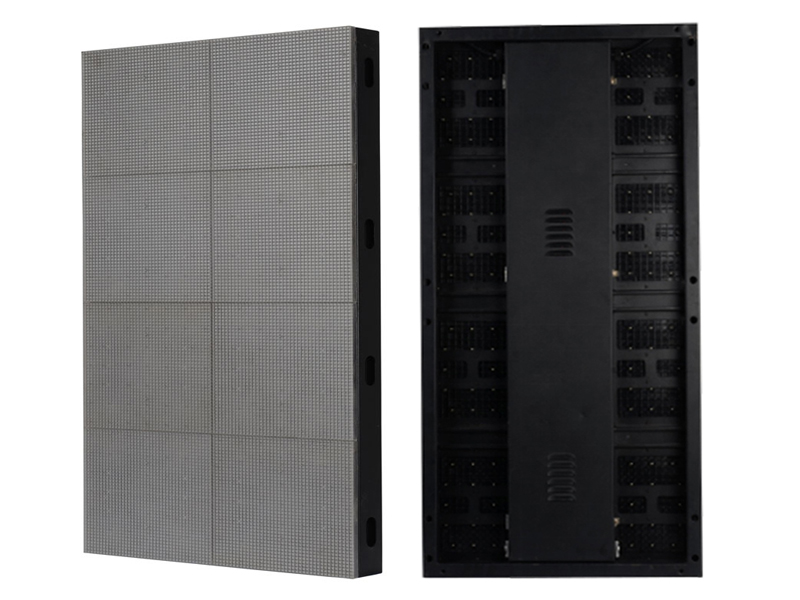

Dance Floor LED Display

Usage Environment： Indoor & Outdoor
Pixel Ptich： P5.2, P6.25, P8.9
Application： Stage effects, Event & Entertainment, Wedding
PRODUCT DETAILS
ItemsParameter
Pixel Pitch5.2mm6.25mm8.9mm
Pixel Configuration1R+1G+1B(3 In 1)
LED EncapsulationSMD 1921SMD 2727SMD 3535
Pixel Density36864 dots/m²25600 dots/m²12544 dots/m²
Module Resolution(W*H)48(W)*48(H)40(W)*40(H)28(W)*28(H)
Module Size250*250mm250*250mm250*250mm
Cabinet Size500*500/500*1000mm500*500/500*1000mm500*500/500*1000mm
Driving Method1/6 Scan1/5 Scan1/4 Scan
Refresh Frequency≥1920Hz≥1920Hz≥1920Hz
Protection GradeIP54IP54IP54
Weight Loading＞1.5T/Panel
White balance Brightness≥2000cd/ m²≥2500cd/ m²≥3000cd/ m²
Color Temperature4500~9000(adjustable)
Viewing Angle120°/120°
Optimal Viewing Distance＞5.2m＞6.25mm＞8.9mm
Working VoltageAC  220V/110V ±10%
Operating Temperature–10℃～65℃
Max.Power Consumption800W/m²800W/m²800W/m²
Avg.Power Consumption280W/m²280W/m²280W/m²
Lifetime100000hours
Weight48Kg/m²48Kg/m²48Kg/m²
