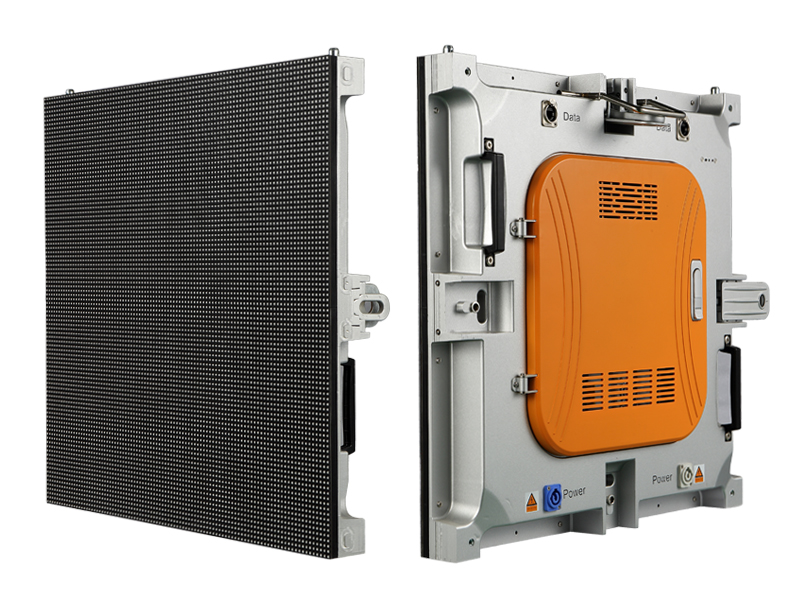

Ri Series Rental LED Display

Usage Environment：	Indoor
Pixel Ptich：	P2.5~P6
Application：	Stage effects, Event & Entertainment, Wedding

PRODUCT DETAILS

Items	Parameter
Pixel Pitch	2.5mm	3mm	4mm	5mm	6mm
Pixel Configuration	1R+1G+1B（3 In 1）
LED Encapsulation	SMD 2121	SMD 2121	SMD 2121	SMD 3528	SMD 3528
Pixel Density	160000 dots/m²	111111 dots/m²	62500 dots/m²	40000 dots/m²	27777 dots/m²
Module Resolution(W*H)	64(W)*64(H)	64(W)*64(H)	64(W)*32(H)	64(W)*32(H)	32(W)*32(H)
Module Size	160*160mm	192*192mm	256*128mm	320*160mm	192*192mm
Cabinet Size	480*480mm	576*576mm	512*512mm	640*640mm	576*576mm
Driving Method	1/32 Scan	1/32 Scan	1/16 Scan	1/16 Scan	1/16 Scan
Refresh Frequency	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Driver IC	Constant current IC with high refresh rate & high grey scale
Grey Scale	14Bit (depending on the system and Configuration)
White balance Brightness	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2	≥1000cd/ m2
Color Temperature	4500~9000(adjustable)
Viewing Angle	120°/120°
Optimal Viewing Distance	＞2.5m	＞3m	＞4m	＞5m	＞6m
Working Voltage	AC 220V/110V ±10%
Operating Temperature	–10℃～65℃
Max.Power Consumption	750W/m²	750W/m²	750W/m²	750W/m²	750W/m²
Avg.Power Consumption	250W/m²	250W/m²	250W/m²	250W/m²	250W/m²
Lifetime	50000hours
Weight	8.5Kg/Panel	8.5Kg/Panel	8.5Kg/Panel	8.5Kg/Panel	8.5Kg/Panel
