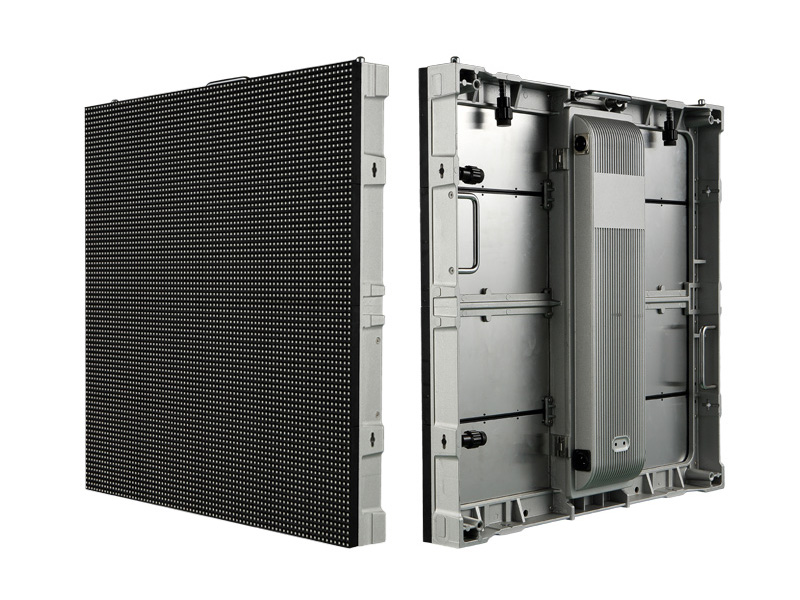

Ro Series Rental LED Display

Usage Environment：	Outdoor
Pixel Ptich：	P4~P6
Application：	Stage effects, Event & Entertainment, Wedding

PRODUCT DETAILS

Items	Parameters
Pixel Pitch	4mm	5mm	6mm
Pixel Configuration	1R+1G+1B(3 In 1)
LED Encapsulation	SMD 1921	SMD 2727	SMD 3535
Pixel Density	62500 dots/m²	40000 dots/m²	27777dots/m²
Module Resolution(W*H)	64(W)*32(H)	64(W)*32(H)	64(W)*64(H)
Module Size	256*128mm	320*160mm	192*192mm
Cabinet Size	512*512mm	640*640mm	576*576mm
Driving Method	1/8 Scan	1/8 Scan	1/8 Scan
Refresh Frequency	≥1920Hz	≥1920Hz	≥1920Hz
Driver IC	Constant current IC with high refresh rate & high grey scale
Grey Scale	14Bit (depending on the system and Configuration)
White balance Brightness	≥5500cd/ m2	≥5500cd/ m2	≥5500cd/ m2
Color Temperature	Constant current IC with high refresh rate & high grey scale
Viewing Angle	14Bit (depending on the system and Configuration)
Optimal Viewing Distance	＞4m	＞5m	＞6m
Working Voltage	AC 220V/110V ±10%
Operating Temperature	–10℃～65℃
Max.Power Consumption	900W/m²	900W/m²	900W/m²
Avg.Power Consumption	300W/m²	300W/m²	300W/m²
Lifetime	100000hours
Weight	8.5Kg/m²	8.5Kg/m²	8.5Kg/m²
