PRODUCT OVERVIEW
FEATURES
WIDE APPLICATION
Pixel Pitch: I-P2.6/P2.976 /P3.91
O-P2.6/P2.976 /P3.91
Pixel Configuration: SMD
Brightness: 1000CD/Sqm ; 4000CD/Sqm
Refresh Rate: 1920/2880/3840Hz

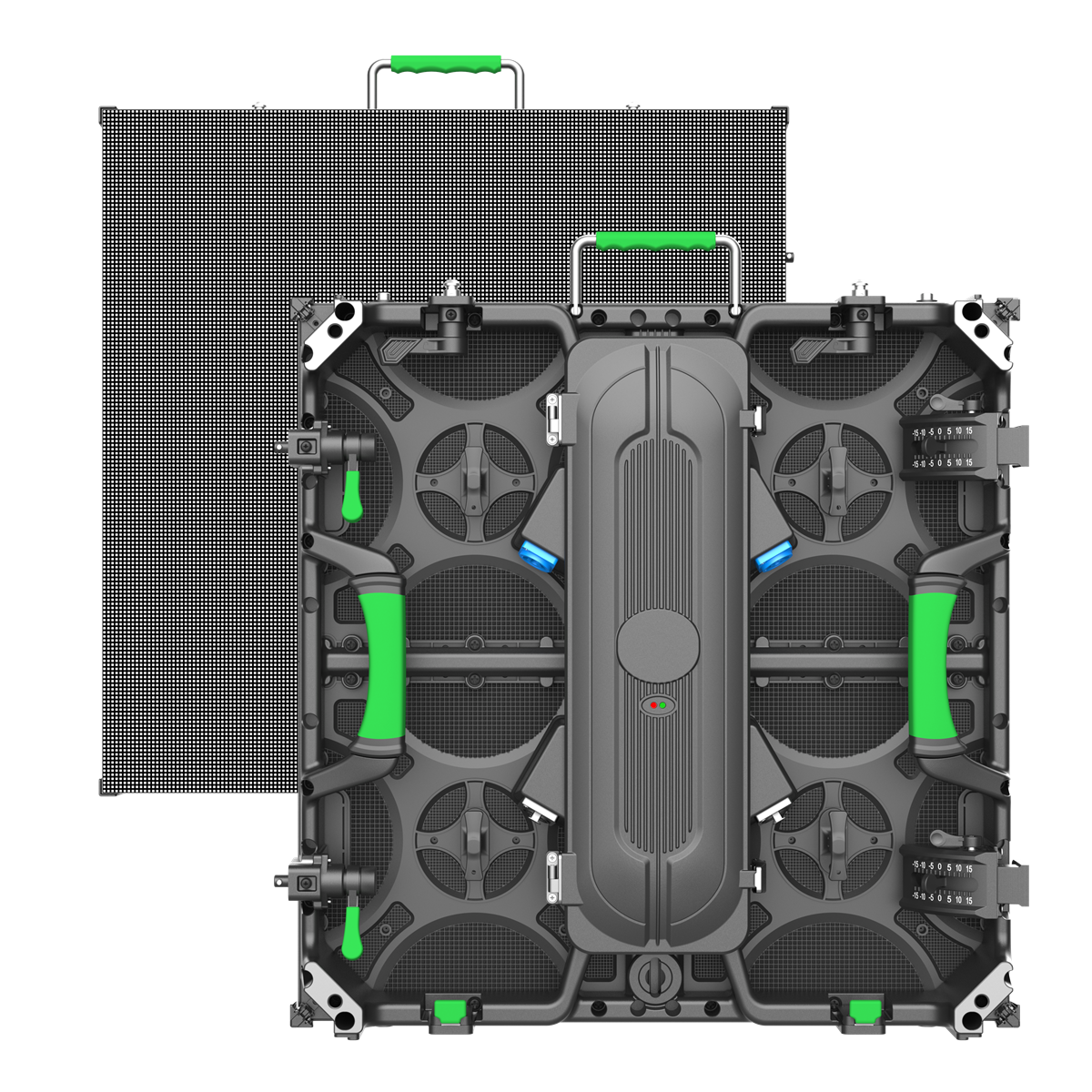

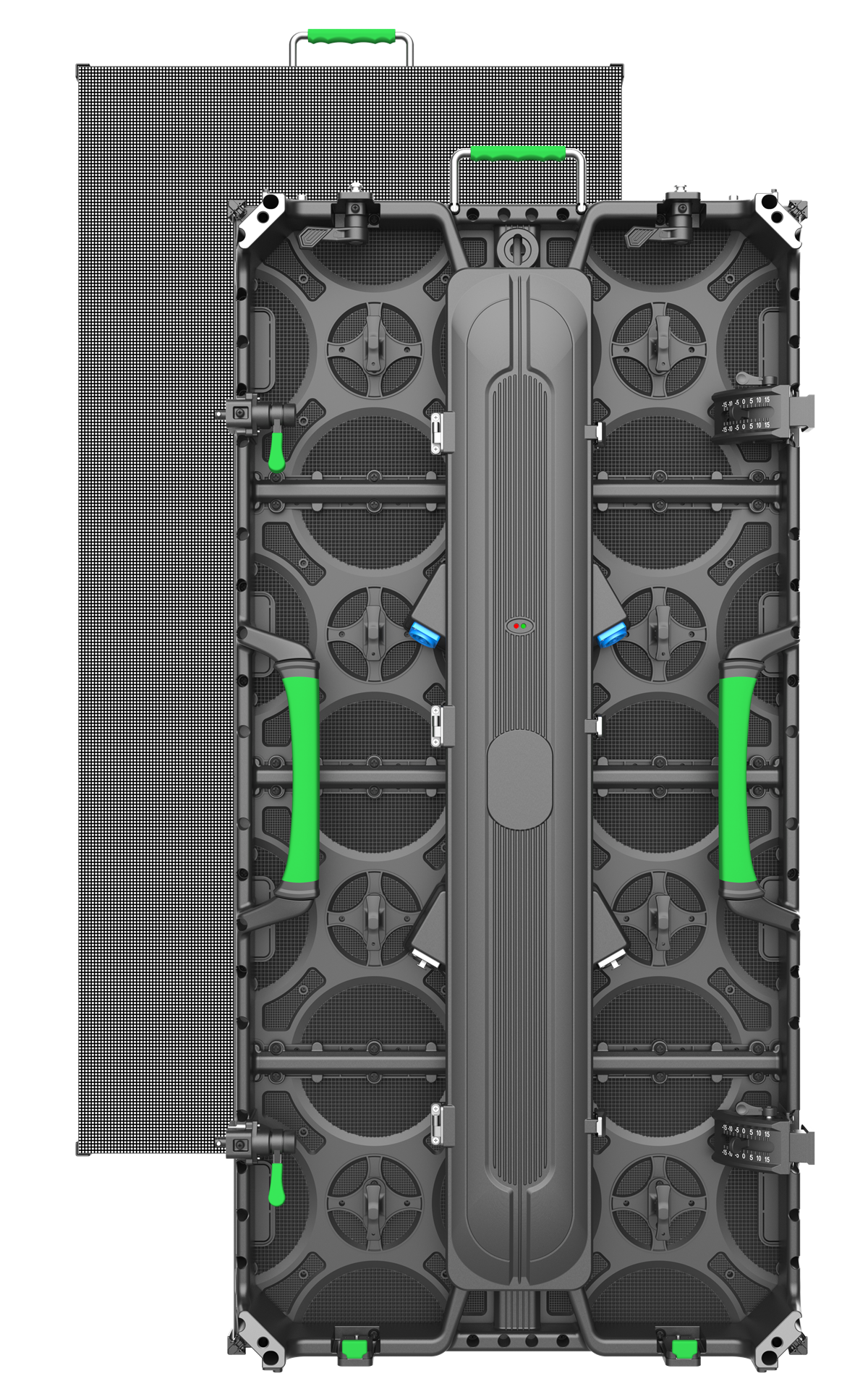

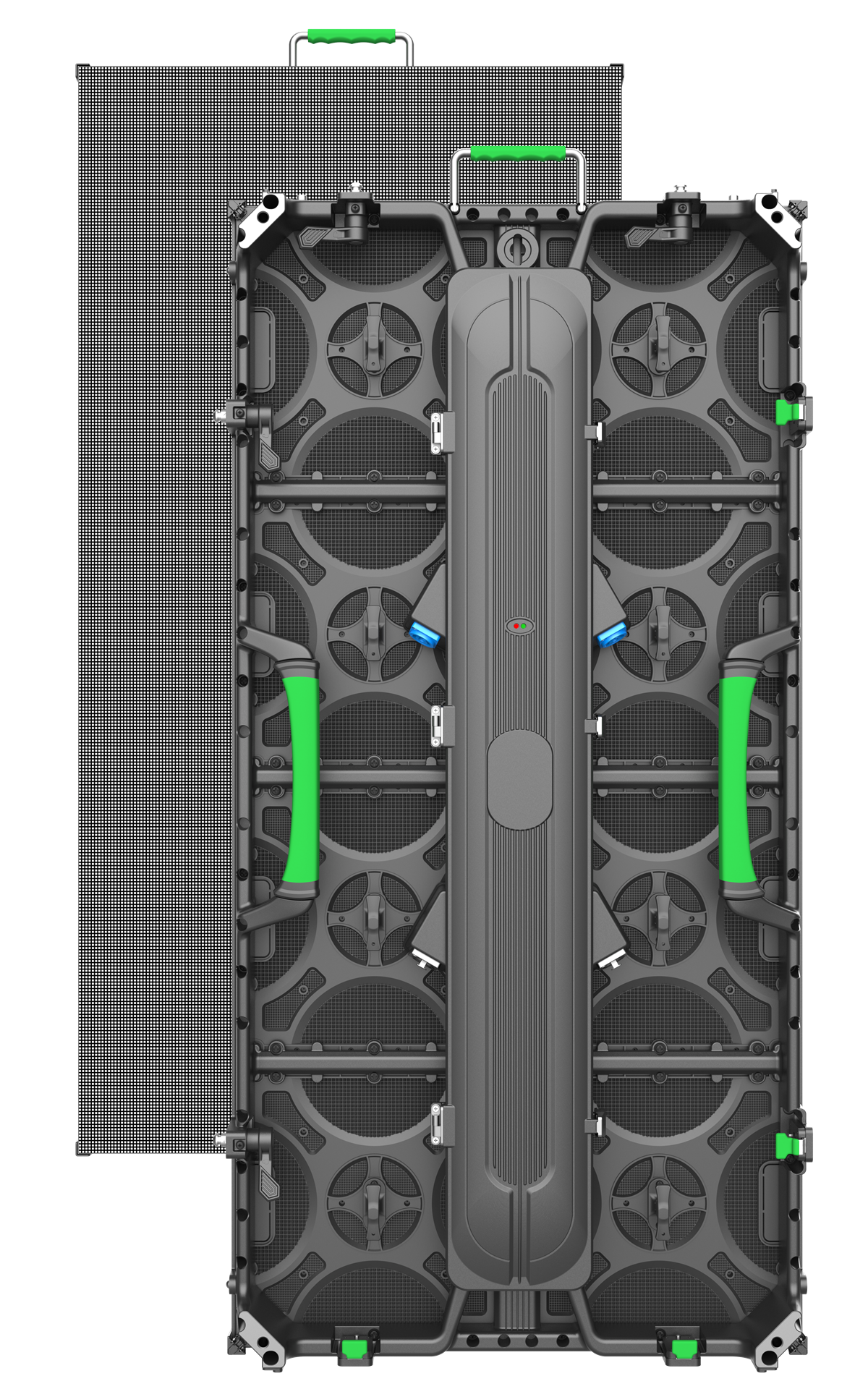

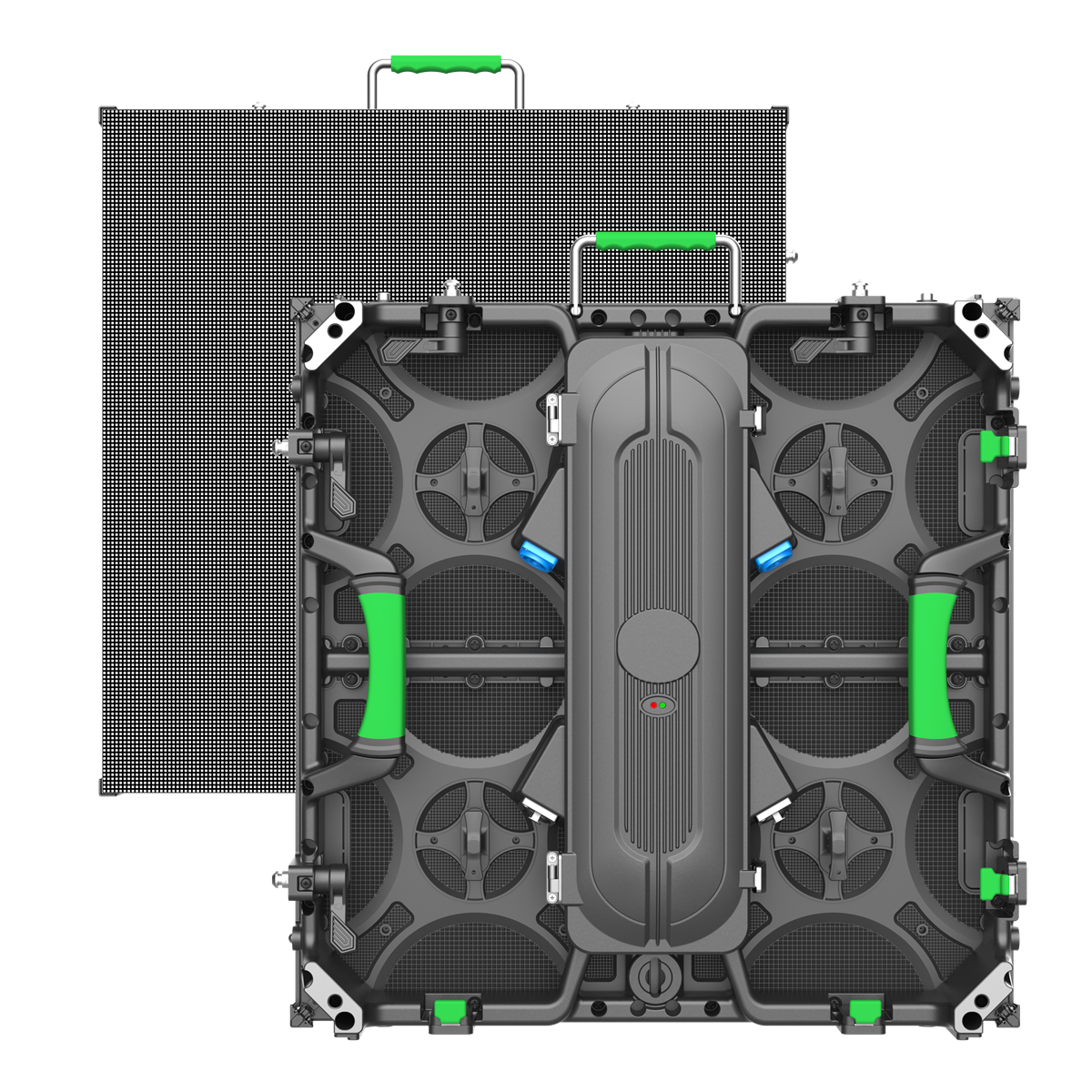

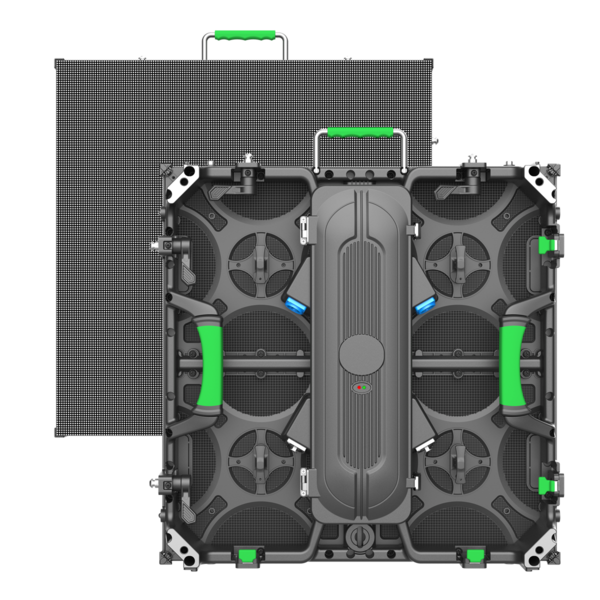

Panel Dimension: 500*500*85mm/500*1000*85mm
HIGH PRECISION AND LIGHT WEIGHT
Smart structure design makes it strong enough to
guarantee the precision ≤0.1mm without distortion
when finishing, And the weight only 8kg/15kg.
TECHNICAL PARAMETERS
| ITEM | INDOOR | OUTDOOR |
Pixel Pitch(mm)
| 2.604
| 2.976 | 3.91 | 2.604 | 2.976 | 3.91 |
| Pixel Configuration | 1R+1G+1B(3 IN 1) | 1R+1G+1B(3 IN 1) |
| LED Encapsulation | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1921 | SMD1921
|
| Pixel Density(Dot/m²) | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 |
| Module Resolution(W*H) | 96*96
| 84*84 | 64*64 | 96*96 | 84*84 | 64*64 |
| Module Size(mm) | 250*250 | 250*250 |
| Cabinet Size(mm) | 500*500*85/500*1000*85
| 500*500*85/500*1000*85 |
| Driving Method | 1/32
| 1/28
| 1/16 | 1/32 | 1/21 | 1/16
|
| Grey Scale | 14~16Bit | 14~16Bit |
| Refresh Frequency(Hz) | ≥1920 | ≥1920 |
| White balance Brightness(CD/㎡) | ≥900 | ≥4500 |
| Color Temperature | 4500~9000(adjustable) | 4500~9000(adjustable) |
| Viewing Angle | V120°/H120° | V120°/H120° |
| Optimal Viewing Distance | ≥2.6m | ≥2.976m | ≥3.91m | ≥2.6m | ≥2.976m | ≥3.91m |
| Working Voltage | AC 220V/110V ±10% | AC 220V/110V ±10% |
| Operating Temperature | –10℃～65℃ | –10℃～65℃ |
| Max.Power Consumption(W/Sqm) | 800 | 800 | 800 | 800
| 900 | 900
|
| Avg.Power Consumption(W/Sqm) | 200 | 200 | 200 | 240 | 240 | 240 |
| Lifetime(Hours) | 100000 | 100000 |
| Weight(Kg) | 7.5Kg/13.5Kg | 7.5Kg/13.5Kg |
