PRODUCT OVERVIEW
FEATURES
1. WIDE APPLICATION
Pixel Pitch: I-P2.6/P2.976 /P3.91/P4.81
O-P3.91/P4.81/P5.95/P6.25
Pixel Configuration: SMD
Brightness: 1000CD/Sqm ; 4500CD/Sqm
Refresh Rate: 1920/2880/3840Hz
Panel Dimension: 500*500*88mm

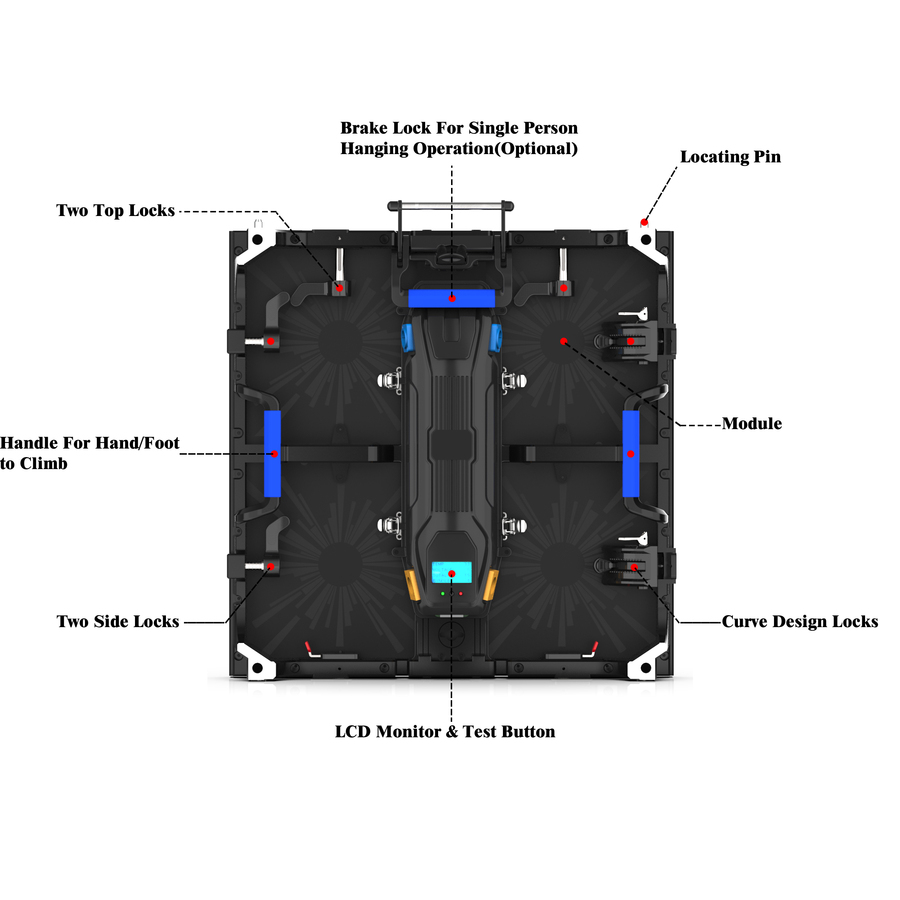

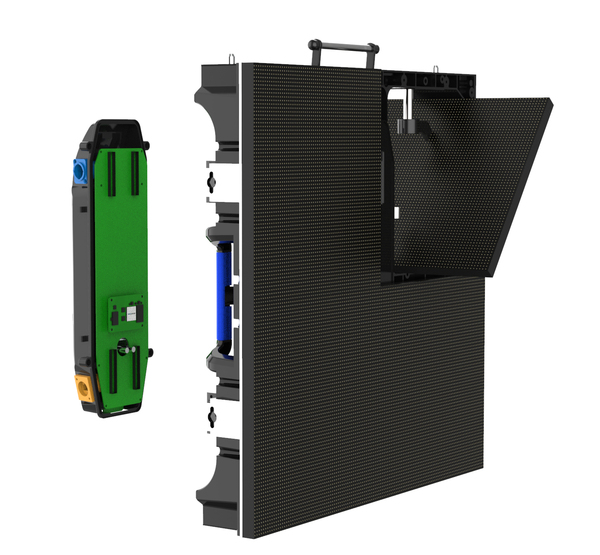

2. INDEPENDENT CONTROL BOX DESIGN
The Power Supply, Receiving Card, Power & Signal Connector All Are Integrated Into Back Box. Easy To Assemble & Disassemble For Maintenance. Also Rear /Magnet Front Access(Optional) are available.
3. CURVE SHAPED DESIGN
New Designed Curve Lock Can Make It Into Convex Shape Within 0°~15° And Concave Shape Within 0°~15°. Besides, The Curve Panel Can Be Locked With The Flat Panel That Will Save You A Lot Cost.
4. Mixed Installation
The Location Of The Top Locks And Side Locks are Ingeniously Designed That Allows The Panels Mixed Installation And Makes Your Event More Creative.

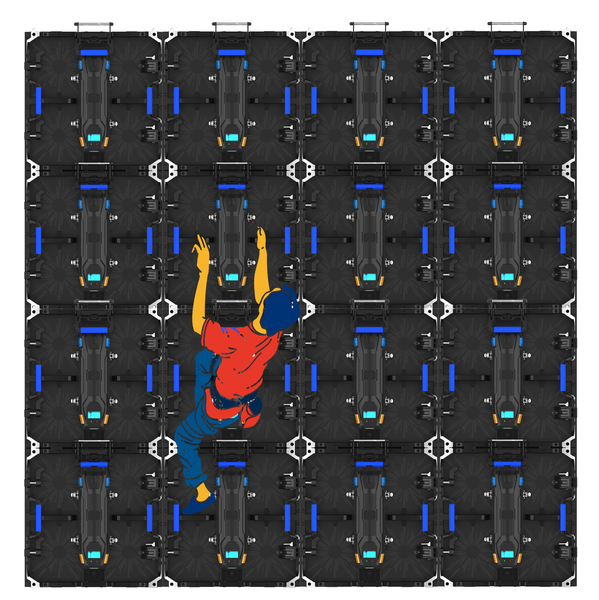

5. Support Climbing
The Climbing Assistant Handle Can Assist Crews To Climb Which Loads About 200Kg. It's A Great Help When Install A Big Screen.
TECHNICAL PARAMETERS
| Items | INDOOR | OUTDOOR |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | 1R+1G+1B(3 In 1) | 1R+1G+1B(3 In 1) |
| LED Encapsulation | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 |
| Pixel Density (dots/m²) | 147456 | 112896 | 65536 | 43264 | 65536 | 43264 | 28224 | 25600 |
| Module Resolution(W*H) | 96*96 | 84*84 | 64*64 | 52*52 | 64*64 | 52*52 | 42*42 | 40*40 |
| Module Size | 250*250mm | 250*250mm |
| Cabinet Size | 500*500*88mm | 500*500*88mm |
| Driving Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | 1/16 Scan | 1/13 Scan | 1/14 Scan | 1/10 Scan |
| Refresh Frequency | 1920/2880/3840Hz | 1920/2880/3840Hz |
| Grey Scale | 14~16Bit | 14~16Bit |
| White balance Brightness | ≥800cd/m² | ≥4500cd/m² |
| Color Temperature | 4500~9000(adjustable) | 4500~9000(adjustable) |
| Viewing Angle | 120°/120° | 120°/120° |
| Optimal Viewing Distance | ＞2.6m | ＞2.97m | ＞3.91m | ＞4.81m | ＞3.91m | ＞4.81m | ＞5.95m | ＞6.25m |
| Working Voltage | AC 220V/110V ±10% | AC 220V/110V ±10% |
| Operating Temperature | –10℃～65℃ | –10℃～65℃ |
| Max.Power Consumption(W/m²) | 800 | 800 | 750 | 750 | 900 | 900 | 900 | 900 |
| Avg.Power Consumption(W/m²) | 270 | 270 | 250 | 250 | 300 | 300 | 300 | 300 |
| Lifetime | 100000hours | 100000hours |
| Weight | 8Kg | 8Kg |
